Trapezoidal (TR) thread gauges manufacturer & supplier

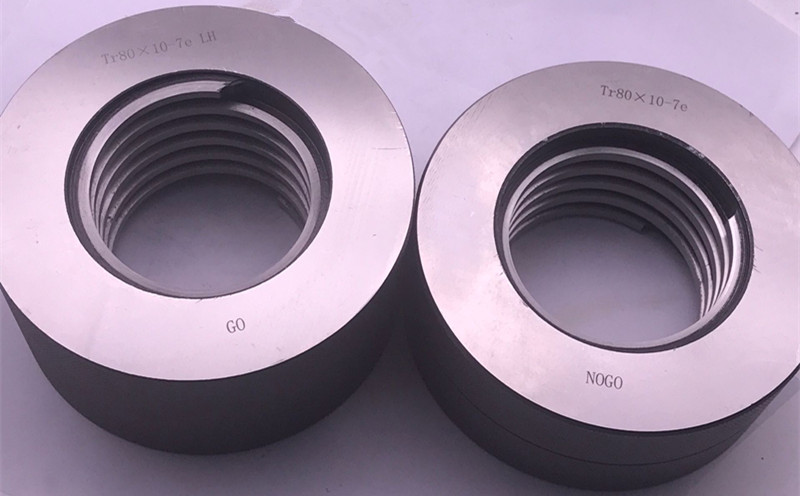

Trapezoidal thread ring gauges and plug gauges with thread angle 30°

Tolerance class: Internal thread 6H, 7H, 8H; External thread: 6e, 7e, 8c

6H, 6e for Fine tolerance quality; 7H, 7e for medium tolerance quality;

8H, 8c for Coarse tolerance quality

Standard class of fit: Plug gage 7H & ring gauge 7e

Trapezoidal thread is mainly used for transmission (feed and lift) and position adjustment device, it is widely used in machinery industry. Trapezoidal threads also can be used in fastening-connection. Trapezoidal thread is not suited precision transmission thread which has high requirements on transmission accuracy.

All these Trapezoidal (Tr) thread gages are produced according to standard: DIN 103

Go & NOGO, RH & LH (left hand) available

As below are some sizes we can provide

Tr 8×1.5	Tr 9×1.5	Tr 9×2	Tr 10×1.5
Tr 10×2	Tr 11×2	Tr 11×3	Tr 12×2
Tr 12×3	Tr 14×2	Tr 14×3	Tr 16×2
Tr 16×4	Tr 18×2	Tr 18×4	Tr 20×2
Tr 20×4	Tr 22×3	Tr 22×5	Tr 22×8
Tr 24×3	Tr 24×5	Tr 24×8	Tr 26×3
Tr 26×5	Tr 26×8	Tr 28×3	Tr 28×5
Tr 28×8	Tr 30×3	Tr 30×6	Tr 30×10
Tr 32×3	Tr 32×6	Tr 32×10	Tr 34×3
Tr 34×6	Tr 34×10	Tr 36×3	Tr 36×6
Tr 36×10	Tr 38×3	Tr 38×7	Tr 38×10
Tr 40×3	Tr 40×7	Tr 40×10	Tr 42×3
Tr 42×7	Tr 42×10	Tr 44×3	Tr 44×7
Tr 44×12	Tr 46×3	Tr 46×8	Tr 46×12
Tr 48×3	Tr 48×8	Tr 48×12	Tr 50×3
Tr 50×8	Tr 50×12	Tr 52×3	Tr 52×8
Tr 52×12	Tr 55×3	Tr 55×9	Tr 55×14
Tr 60×3	Tr 60×9	Tr 60×14	Tr 65×4
Tr 65×10	Tr 65×16	Tr 70×4	Tr 70×10
Tr 70×16	Tr 75×4	Tr 75×10	Tr 75×16
Tr 80×4	Tr 80×10	Tr 80×16	Tr 85×4
Tr 85×12	Tr 85×18	Tr 90×4	Tr 90×12
Tr 90×18	Tr 95×4	Tr 95×12	Tr 95×18
Tr 100×4	Tr 100×12	Tr 100×20	Tr 105×4
Tr 105×12	Tr 105×20	Tr 110×4	Tr 110×12
Tr 110×20	Tr 115×6	Tr 115×14	Tr 115×22
Tr 120×6	Tr 120×14	Tr 120×22	Tr 125×6
Tr 125×14	Tr 125×22	Tr 130×6	Tr 130×14
Tr 130×22	Tr 135×6	Tr 135×14	Tr 135×24
Tr 140×6	Tr 140×14	Tr 140×24	Tr 145×6
Tr 145×14	Tr 145×24	Tr 150×6	Tr 150×16
Tr 150×24

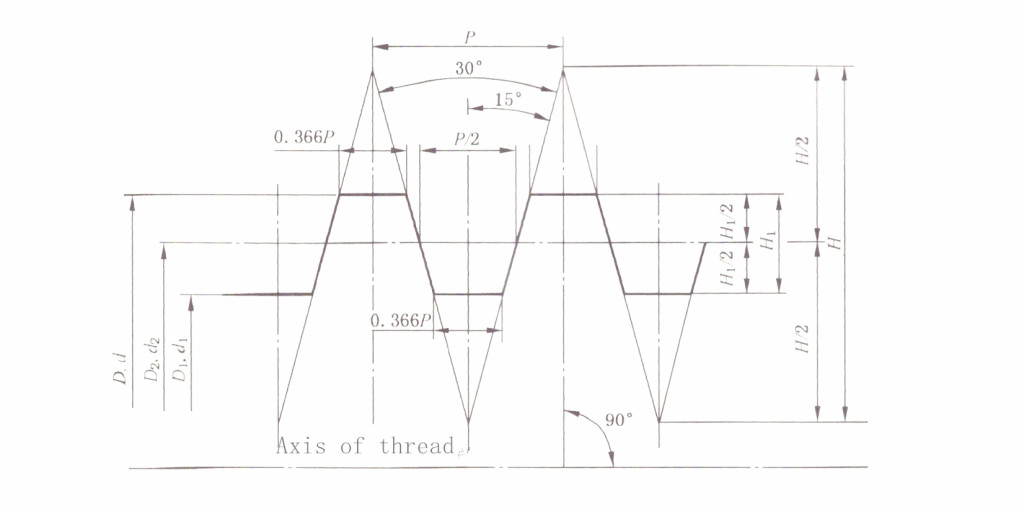

Trapezoidal thread

H=1.866 P; H1=0.5P

D(d)= Major diameter D2(d2)= Pitch diameter D1(d1)=Minor diameter

Metric Trapezoidal thread’s basic profile

Standard: GB/T 8124-2004, DIN 103-9:1985, NF E03-619:2007
